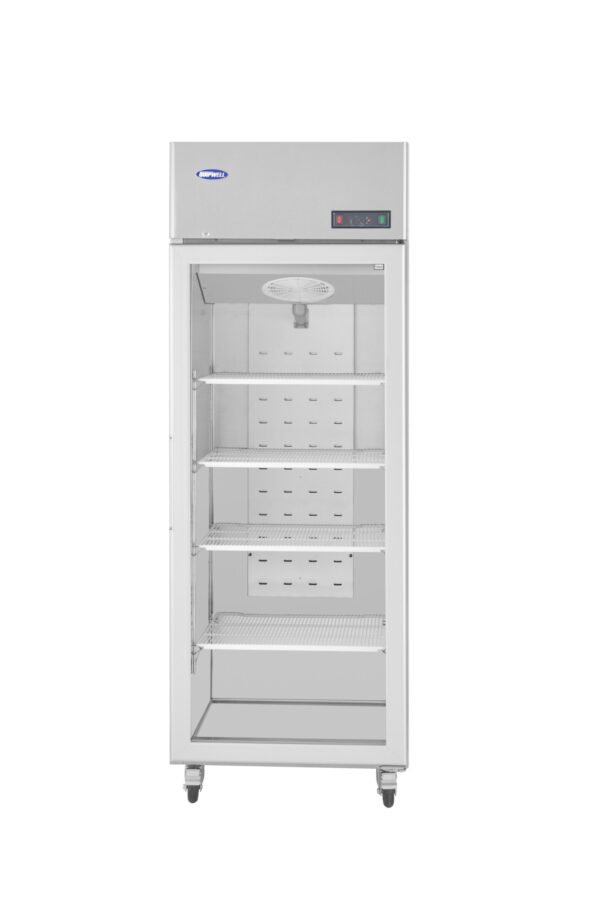

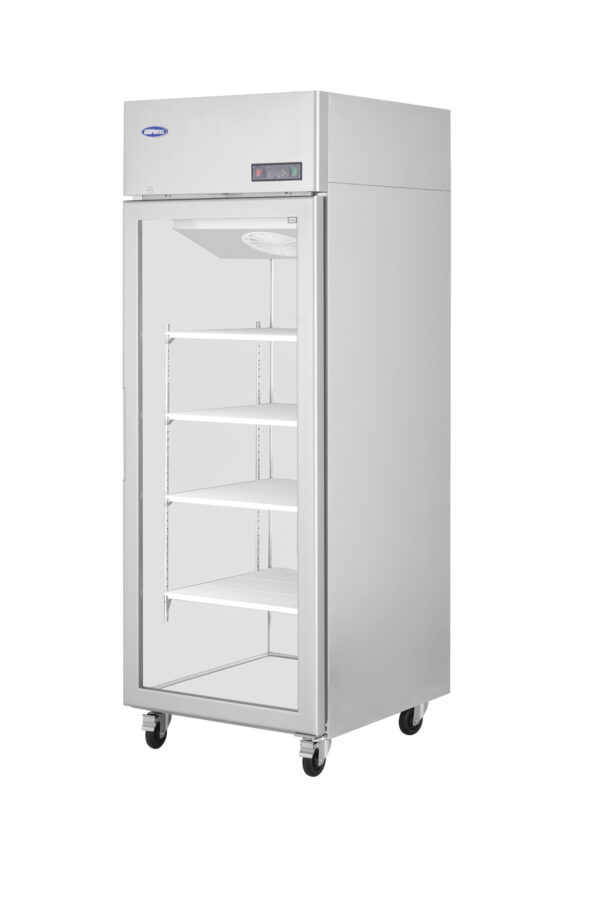

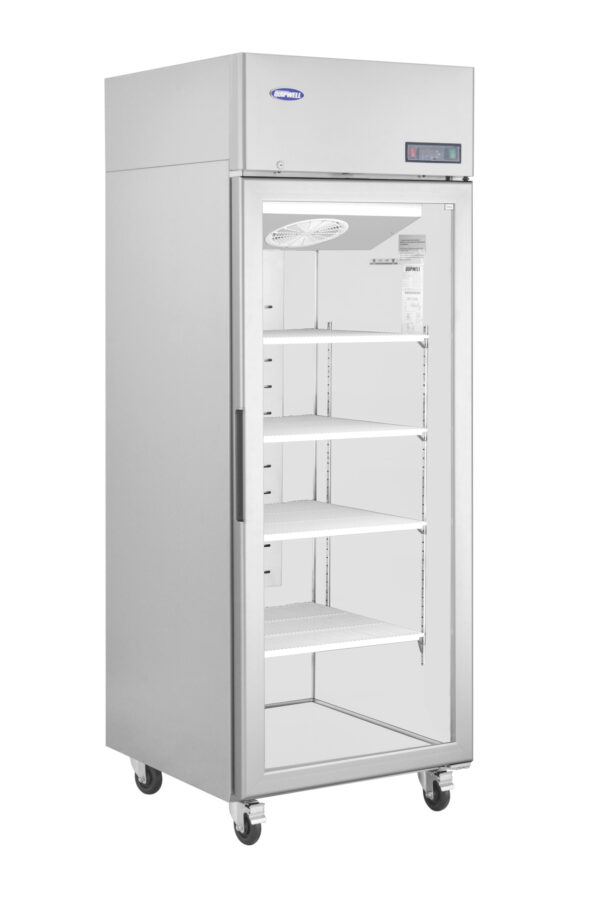

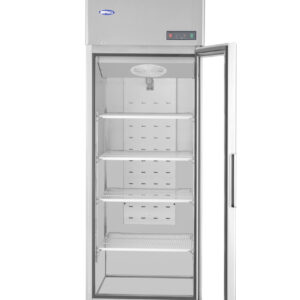

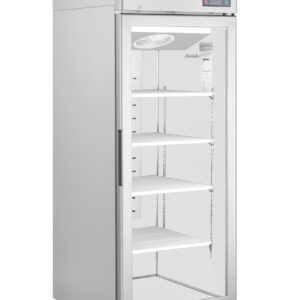

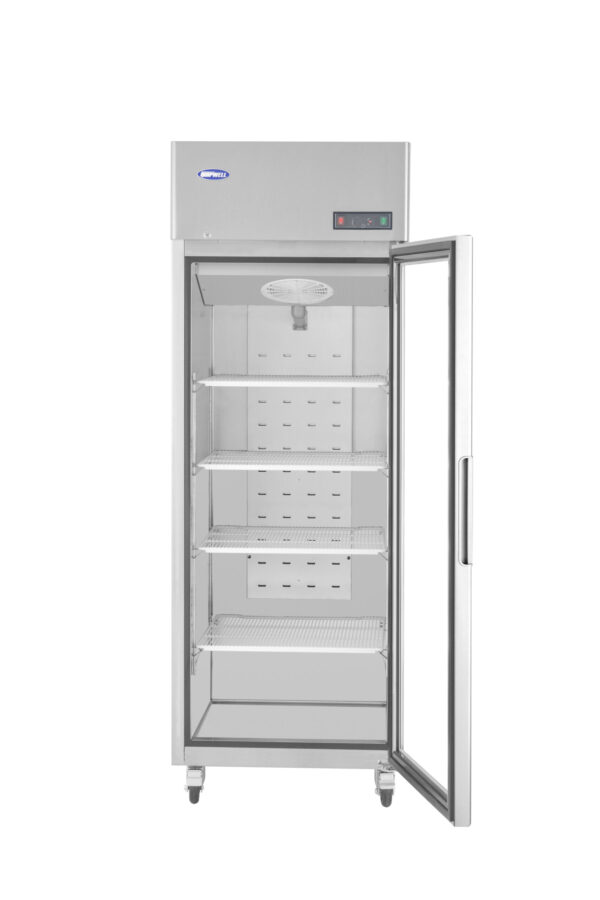

TGC66 1 Door Upright Display Freezer 670L

$2,400.00 inc GST

Brand Logo
$4.35 /day

Upright Display Freezer | 670L | 1 Hinged Door | Triple Glazed Glass | Auto Defrost

Display More. Sell More. Save More.

Key Features

  • 670L spacious capacity to showcase frozen seafood, ice cream, and packaged goods
  • 4× adjustable shelves for flexible stocking and display options
  • 1× triple glazed anit-fog glass hinge door improves visibility and insulation
  • Bright vertical LED lighting enhances product presentation and simplifies stocktaking
  • Fan-forced dynamic cooling (-20°C to -17°C) with Carel digital temperature control
  • Eco-friendly, energy efficient refrigeration (8.65kWh/24h) with auto defrost
  • Stainless steel build with quiet, powerful performance in up to 43°C

Calculate Delivery Cost

Description

Whether showcasing frozen products to customers or to see the contents of your kitchen freezer without opening the doors, our Wellquip TGC66 1 Door Upright Display Freezer 670L offers a high performance refrigeration solution. Perfect for supermarkets, butcheries, seafood markets, retail and hospitality venues, it combines reliable cold storage and efficiency to showcase ice cream, frozen meals and packaged products in style

With a 670L capacity and 4× sturdy adjustable shelves, this 1 Door Commercial Upright Display Freezer makes it easy to store and merchandise a range of frozen products like ice cream, seafood, meats and ready-to-go packaged meals. A triple glazed anit-fog glass display door enhances thermal efficiency, while the bright interior LED lighting makes products easy to view and well-presented to customers.

The heavy-duty top-mounted Embraco compressor keeps refrigeration components away from floors and is ideal for high clearance ceilings. A dynamic refrigeration system with a powerful evaporator fan and auto defrost ensures rapid and even air circulation for everyday use in ambient temperatures up to 43°C. The Carel digital temperature controller with LED display maintains freshness between -20°C to -17°C, while the eco-friendly R290 refrigeration system delivers low energy consumption of just 8.65kWh/24h.

Constructed entirely from high-grade stainless steel for long-lasting durability in demanding commercial environments. A self-closing hinge door in a sleek silver frame also features a 105° stay-open hinge to simplify stock control. Limit temperature loss with magnetic door seal enclosure and an automatic door sensor that pauses the fan cooling system when the door is open.

4× castor wheels with front locks make it easy to move and position, while rounded internal corners and edges simplify cleaning and maintenance. Safeguard your inventory after hours with an integrated door lock.

Practical, reliable and efficient, our heavy-duty Wellquip TGC66 1 Door Upright Display Freezer 670L ensures steady performance in any commercial setting — so you can focus on delighting your customers.

Order now for a powerful but quiet refrigeration solution to elevate your front-of-house and back-of-house operations!

size chest(in.) waist(in.) hips(in.)
XS 34-36 27-29 34.5-36.5
S 36-38 29-31 36.5-38.5
M 38-40 31-33 38.5-40.5
L 40-42 33-36 40.5-43.5
XL 42-45 36-40 43.5-47.5
XXL 45-48 40-44 47.5-51.5

Additional information

Weight 130 kg
Dimensions 83 × 76 × 219 cm

Features

  • Design: Top-mounted heavy-duty Embraco compressor keeps refrigeration components away from floors and is ideal for high clearance ceilings. Compact footprint with maximum vertical display capacity for both merchandising and cold storage.

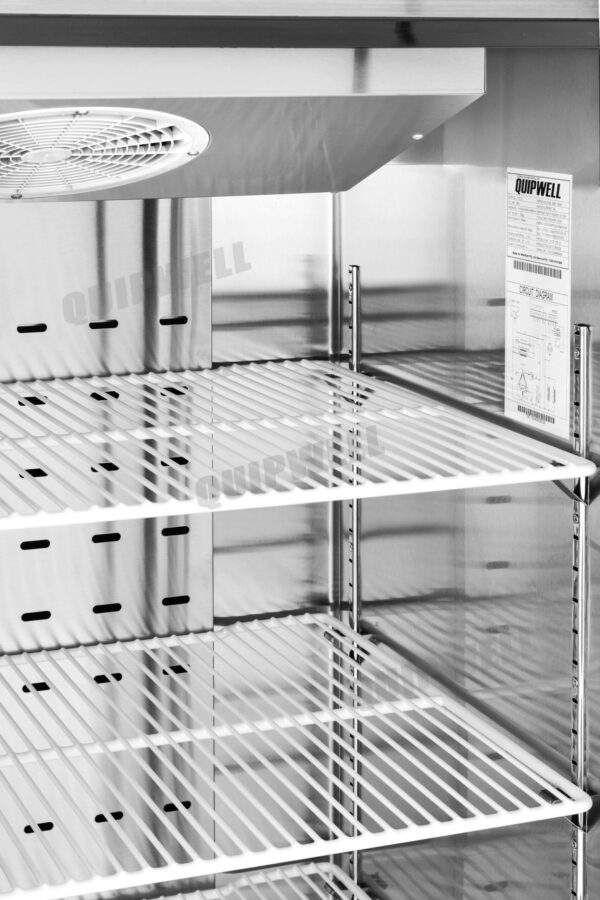

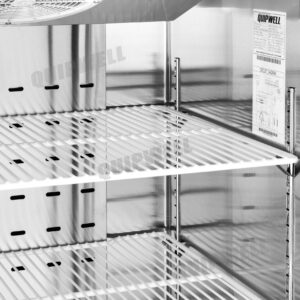

  • Storage: 670L storage capacity with 4× adjustable shelves for flexible storage and display.
  • Display: Energy-efficient interior LED vertical lighting. 1× triple glazed anti-fog glass display for insulation and reduced condensation.
  • Cooling System: Fan-forced dynamic refrigeration with a powerful evaporator fan and auto defrost to maintain consistent cabinet temperatures between -20℃ to -17℃.
  • Climate Rating: Climate class 4 (ST) rated for the Australian climate to operate in ambient temperatures of up to 43℃ and 55% RH humidity with a low noise design (<65 decibels). L1-rated -18°C to -15°C temperature class for frozen perishables.
  • Efficiency: Eco-friendly R290 refrigerant and high density cyclopentane insulation results in low energy consumption (8.65kWh/24h). Magnetic door seal and an automatic door sensor limits temperature loss by pausing the fan cooling system when the door is open.

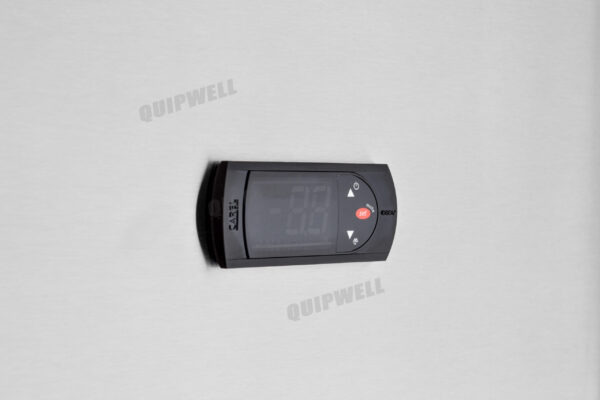

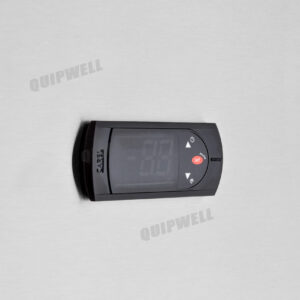

  • Controls: Carel digital temperature controller with LED display for precise regulation.
  • Construction: Durable stainless steel build throughout. Easy-to-clean cabinet with rounded edges and corners. 1× self-closing hinge door in a sleek silver frame featuring a 105° stay-open hinge for better stocktaking.

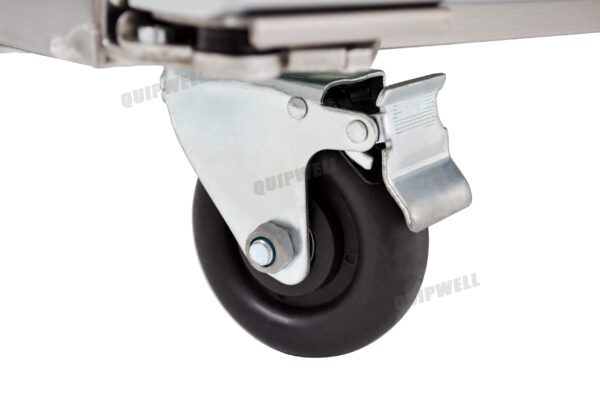

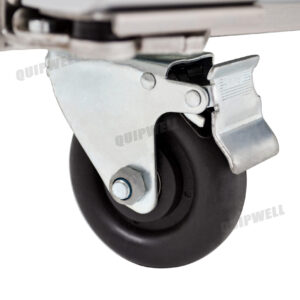

  • Stability: 4× castor wheels for mobility with front locks for easy mobility and positioning.

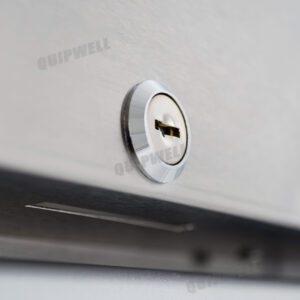

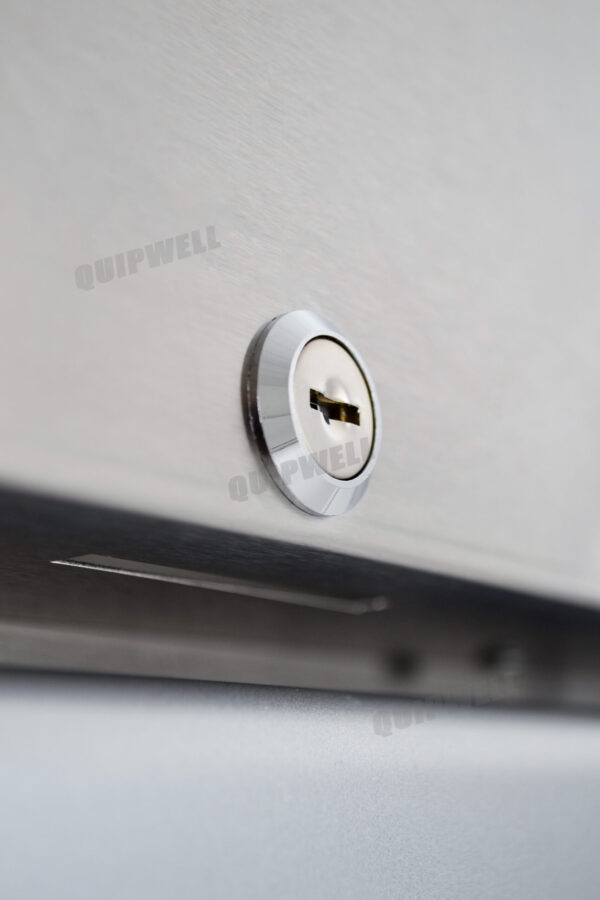

  • Security: Safeguard your inventory after hours with an integrated door lock.

Specifications

Technical
Temperature Range  -20°C to -17°C
Air Circulation  Fan Forced

1× powerful evaporator fans

Auto defrost

Refrigerant  R290 (120g)
Energy Consumption  8.65kWH/24h
Climate Class  4 (ST)

L1-rated -18°C to -15°C temperature class

Max. Ambient Temperature  +43°C
Humidity Testing Standard  55% RH
Power Supply  Single phase 10A power plug at rear-top (2.6m length)
Voltage  220-240V
Frequency  50Hz
Rated Current  4.4A
Power  750W





Build
Volume  670L
Packaged Weight  130kg
Unit Weight  115kg
Door Design  1 triple glazed anti-fog glass hinged door

Silver door frame

Self-closing and stay-open

Automatic door sensor

Integrated lock and key

Shelving System  4 Adjustable Shelves (5 tiers including base)

Shelf Dimension: 590mm (W) x 622mm (D)

Exterior Construction  Stainless steel
Interior Construction  Stainless steel
Air Intake Position  Top
Ventilation Position  Top

NB: Please ensure regular cleaning of the air dust filter

Clearance Required  200mm Top





Dimensions
External  730mm (W) x 800mm (D) x 2130mm (H)
Internal  610mm (W) x 635mm (D) x 1540mm (H)
Packaged  760mm (W) x 830mm (D) x 2180mm (H)
